Digital Earthing

Digital Earthing Device

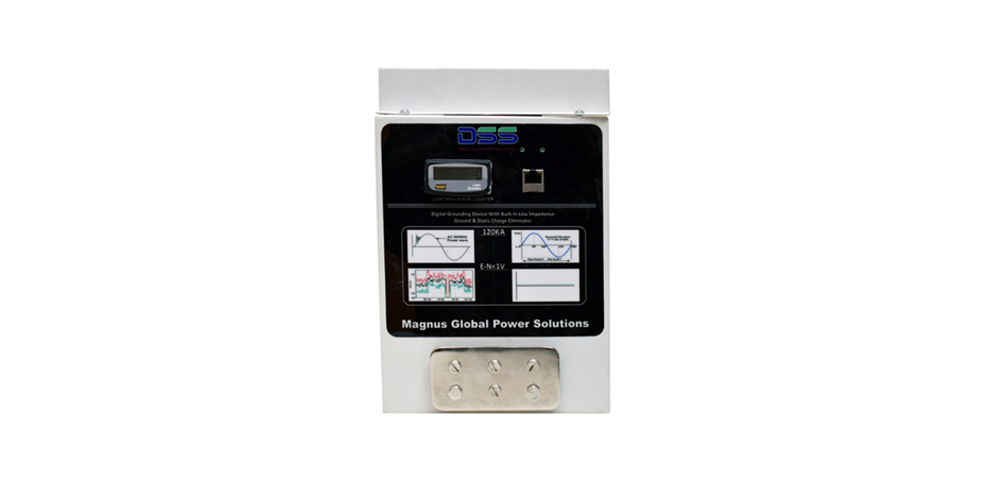

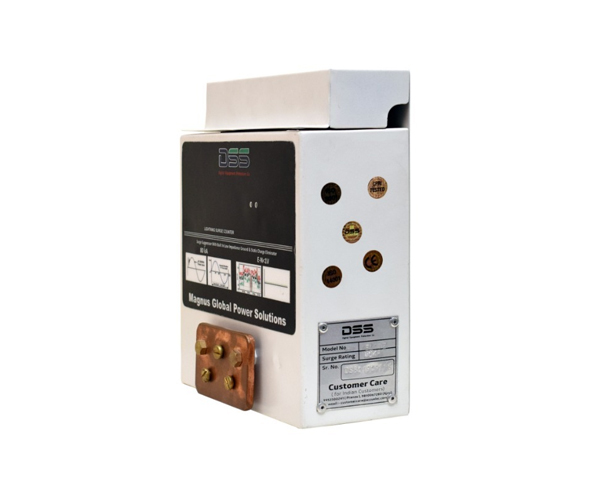

Digital Earthing Device with built in Low impedance Ground & Surge Protection provides a low impedance ground to the sensitive equipment. It also provides equipotential bonding platform to eliminate the possibility of step voltage damage with 100% protection against Lightning / Reverse Lightning Surge & Transients. It also eliminates Static Charge, Noises and all other abnormal electrical characteristics which affect the equipment/ system from power and other service lines. It ensures a clear bonding potential. Digital Earthing Device provides an Earth to Neutral voltage of less than 1.0 volt , Grounding Network Impedance less than 1 Ohm and has the ability to protect the equipment from the dangerous effects of Leakage Current. It comes with a built in digital 6 digit lightening surge counter, self-health visual status indicator and self-protective, self-operated, fully autonomous aerosol based fire extinguisher, all as standard feature in a Pre-wired pulverulent body painted metal enclosure (EMI/EMC- MIL STD 461 F, Shock and vibration MIL STD 810 F and MIL STD 167, Environmental specifications JSS 55555). Models with facility of monitoring various parameters ONLINE are also available. It conforms to IEC, CE Marked; CPRI tested and ISO 9000 & ISO 14001-2015 certified product.

  • Digital Earthing Device provides Earth to Neutral (EN) voltage less than 1 V.
  • Maintenance Free
  • Digital Earthing Device provides protection against all types of surge.
  • Digital Earthing Device provides Grounding impedance of less than 1 ohm throughout its life without maintenance..

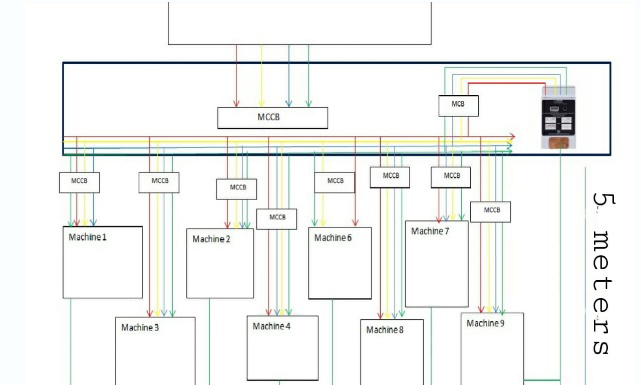

  • Digital Earthing Device provides the same result for the 20 nos. of devices connected within a radius of 5 metres.
  • Digital Earthing Device provides protection against static charge explosion.
  • Digital Earthing Device comes with online monitoring facility.
  • Digital Earthing Device comes with a guarantee period of 2 year /replaced within 24 hours at site only.

How It Works?

Digital Earthing Device comprises of two inbuilt panels. One panel comprises of LC circuits along with Zener Diodes which helps to drop down the current. The surreptitious current is then passed via the second panel comprising of Electrodes immersed in Gel with Nichrome wires which convert it into heat and dissipate it into the surrounding through a copper Expansion plate as seen at front wall of Digital Earthing Device.

Digital Earthing Device provides a low Earth to Neutral (EN) voltage for protection of sensitive equipment. It is a patented technology and proven in several esteemed and reputed industries and institutions.

Certifications

Tested in Central Power Research Lab. (CPRI), CE approved, Tested in Indian Govt. IEC/NABL accredited laboratory for

  • MIL STD810G to ensure that the system offered is tested and certified for wheeled vehicle vibration exposure
  • Conducted and radiated emission immunity as per IEC61000-6-4 and IEC 61000-6-2 to ensure that the offered system has immunity and is safe for sensitive communication equipment.
  • Tested and certified for surge protection requirements as per low voltage on requirements and guidelines as per IEC-61643-11:2011 standards , EMI/EMC tested
  • Electrical fast Transient/burst immunity testing as per IEC 61000-6-1:2016
  • Tested as per IEC 61000-6-3:2011, ISO 9001 & ISO 14001
  • ISO 9001 & ISO 14001 certified
  • Standards : as per IEC-61643-1-2006 IEC 6100-4-5 (2005.11), IEC 61000-6-1, IEC 61000-6-3

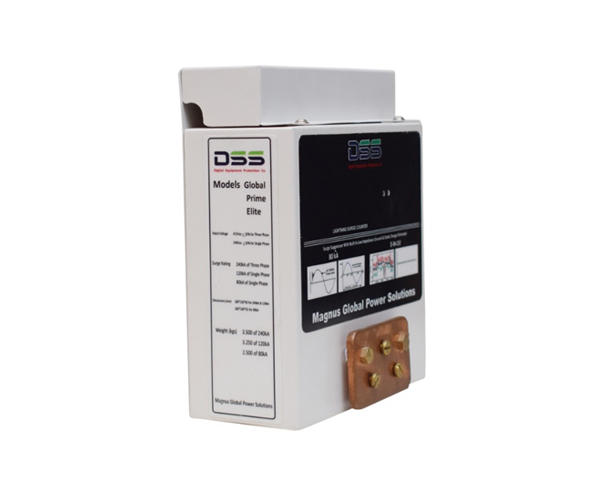

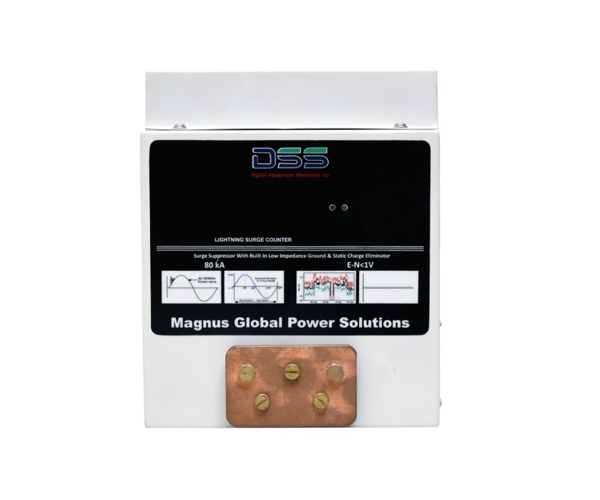

Digital Earthing Device 80 kA

Digital Earthing Device 120 kA

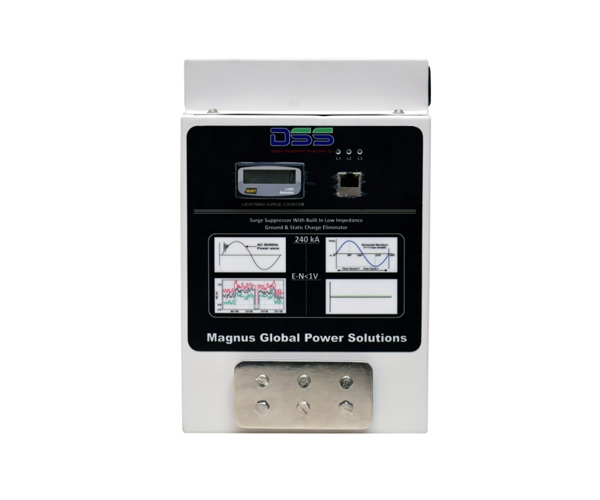

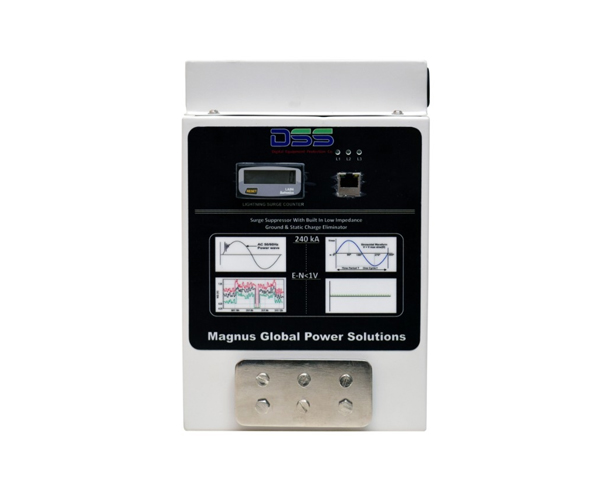

Digital Earthing Device 240 kA

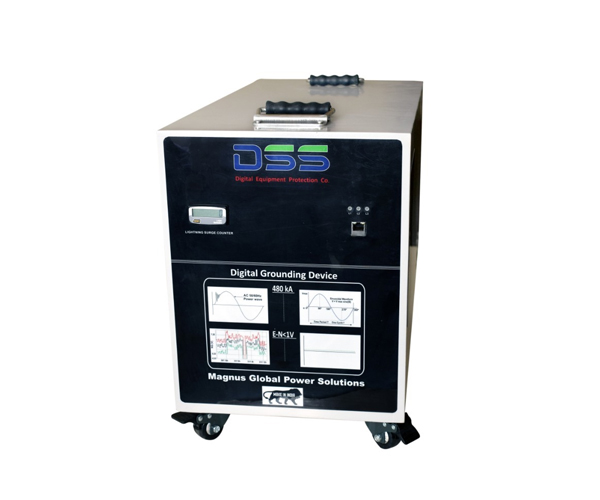

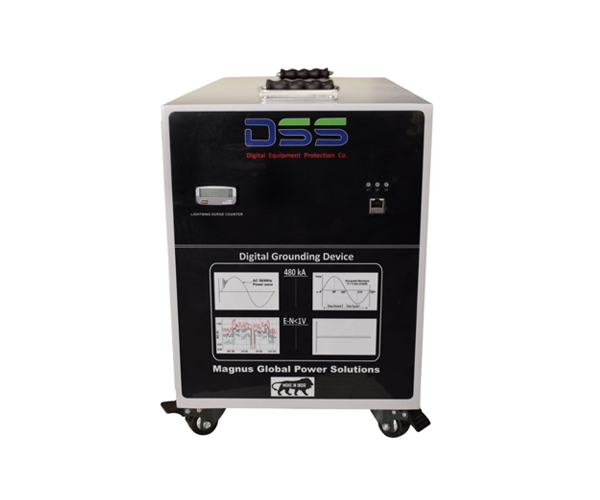

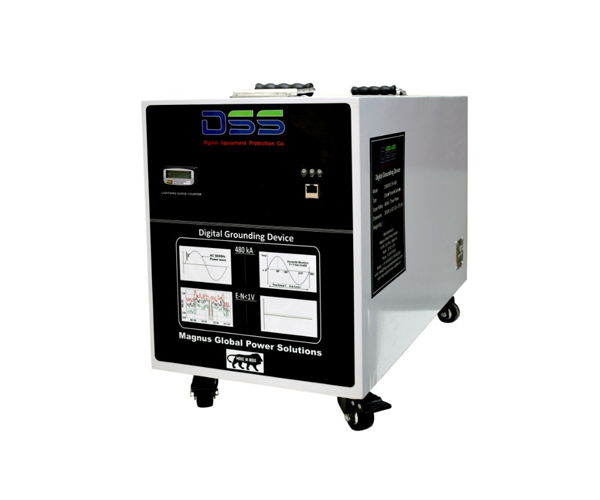

Digital Earthing Device 480 kA

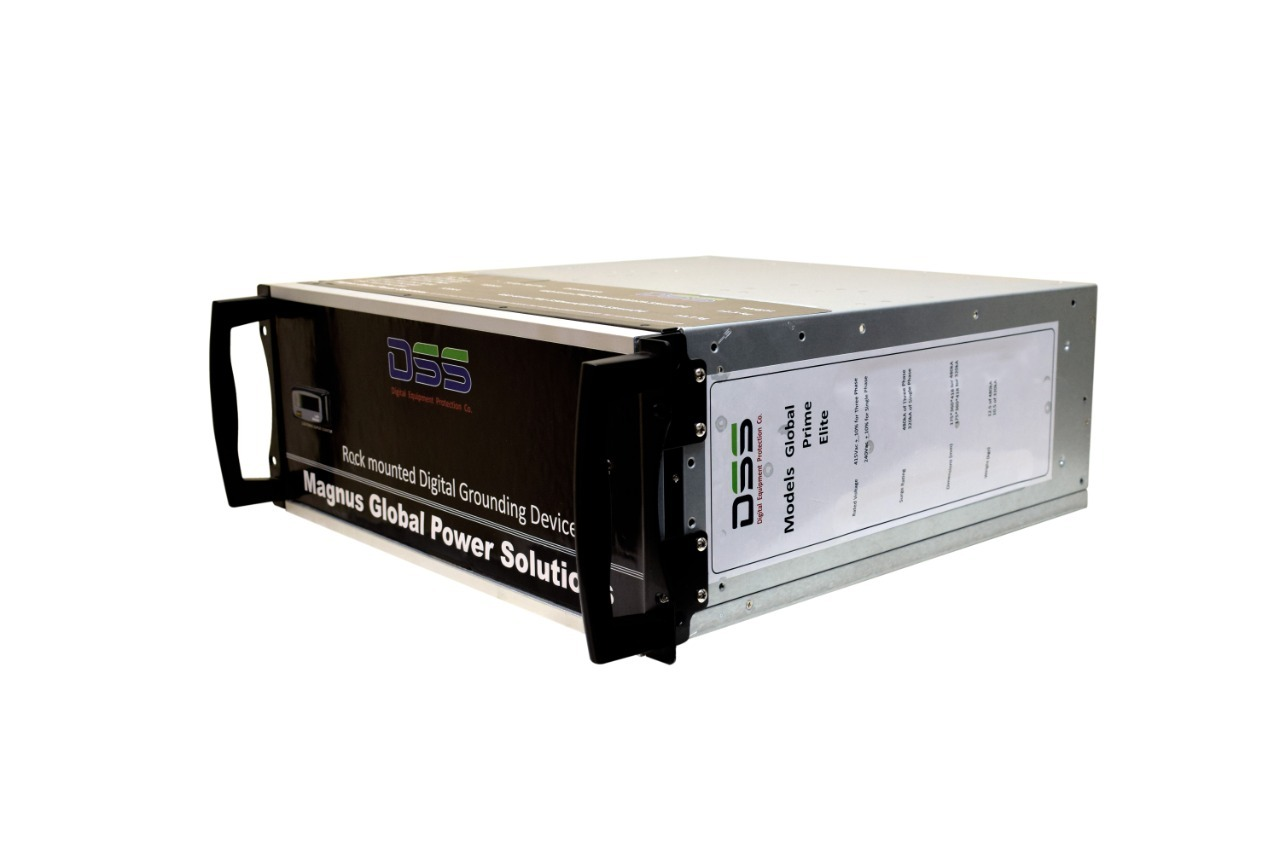

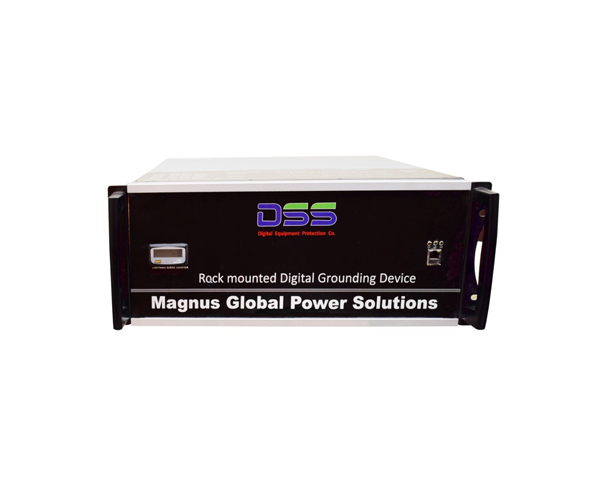

Rack Mounted Digital Earthing Device
